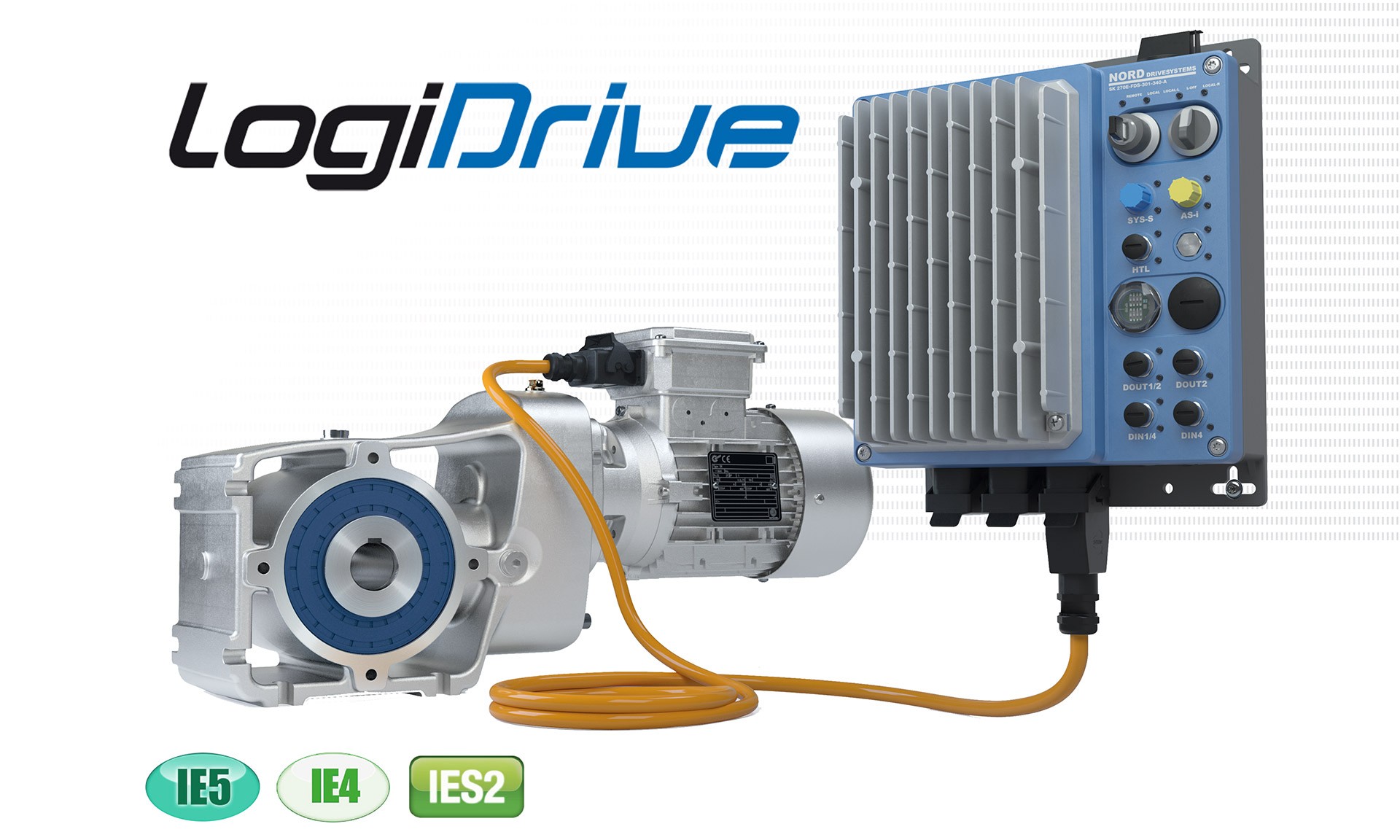

LogiDrive

Energy Efficient, Standardized, Service Friendly

The LogiDrive solution from NORD DRIVESYSTEMS reduces planning and commissioning effort:

NORD inverters for intralogistics and airport applications can control both synchronous and asynchronous motors
Simple planning with identical housing dimensions for synchronous and asynchronous motors
The use of IE4/IE5+ synchronous motors minimizes the total service life costs. The NORD IE4/IE5+ motor achieves a significantly higher efficiency and amortises its acquisition costs in a very short time (ROI)

Version reduction with the NORD modular system

Using the NORD modular system makes it possible to keep the number of versions low. The operator can reduce the total cost of ownership because there are fewer versions.

The field distributor NORDAC LINK (SK 250E)

Internal brake resistor
External 24V power supply unit to supply the control board. This means the same potential for all drives. Even without 400V AC mains voltage, the drives can be addressed via the bus, as the control card remains active through 24V DC.
Decentralised installation
Plug-in EEPROM Data can be transferred if service is required.

The IE4 drive - energy-efficient

The use of IE4 synchronous motors minimizes the total service life costs. The NORD IE4 motor achieves a significantly higher efficiency and amortises its acquisition costs in a very short time (ROI). A mounted version is also available as an alternative.

Energy-efficient

By meeting the highest efficiency standards
Significantly reduces the total cost of ownership
High efficiency even in partial and low speed ranges due to PMSM technology

Reduction of versions

Standardisation of geared motor versions specially tailored to intralogistics and airport technology
Easy Engineering
Easy Selection
Large speed range through inverter technology

Easy to service and maintain

Considerable reduction of spare part stock for the project
Service friendly through plug-and-play technology
Compact, space-saving design
25% less weight due to “lightweight” aluminium housing
Components can be replaced individually

Global presence

NORD DRIVESYSTEMS is represented in 52 countries worldwide
Global network for production, assembly, service and sales

Two-stage helical bevel gearmotor

Performance and design

Performance: 0.16 HP - 12.5 HP
Torque range: 443 lb-inch - 5,842 lb-in

NORDAC® LINK – SK 250E – Variable frequency drive

Rapid installation, simple maintenance

Power range: 0.5–10 HP (0.37–7.5 kW)
Protection class: IP55, IP65
Wall mounting
Simple installation and maintenance due to full pluggability
Free configuration for your application

Standard synchronous motors

Synchronous motors

Performance: 1.5 HP - 7.5 HP
Efficiency class IE4
Global approvals and acceptances

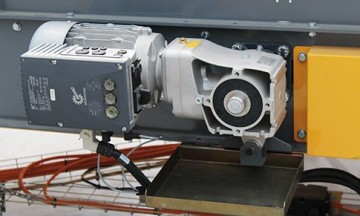

BCS Group

NORD Gear Motors Powering Australia's Fastest Courier Sorting Facility

The BCS group provides complete solutions to airports and airlines. When Toll IPEC wanted to expand its parcel delivery capacities by building a new cargo sorting plant in Melbourne, the contract was awarded to BCS. BCS in turn commissioned NORD to supply around 1,000 bevel geared motors with decentralized inverters.

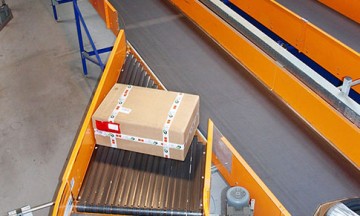

Chronopost

A Thousand Drive System Moves Thousands of Parcels

The parcel center of the French shipping company Chronopost handles around 170,000 parcels per day. Numerous belt conveyors from Budde Fördertechnik GmbH are in use to reliably transport the parcels through the 13,000 m² complex. These are moved by around 1,100 decentralized NORD drives.

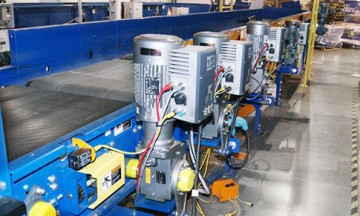

Logan Teleflex

Drive Systems for the Airport Industry

Logan Teleflex, a subsidiary of Daifuku Airport Technologies, is an international solution provider for airport baggage handling systems. For a project in the USA, the company needed a decentralized control solution. NORD supplied 100 drive solutions for this project, consisting of geared motor and frequency inverter.

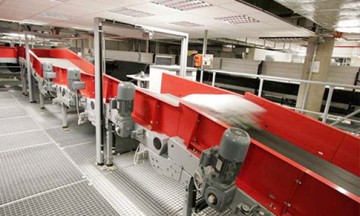

Hamburg Airport

Suitcases on Parade at Hamburg Airport

There are several miles of conveyor belts at Hamburg Airport. In the luggage processing area, these conveyors are responsible for a combination of feeding, holding and sorting. An efficient organization of transport and storage is essential. The reliability of the conveyor system and the prevention of breakdowns ensured by powerful drive technology has top priority.
